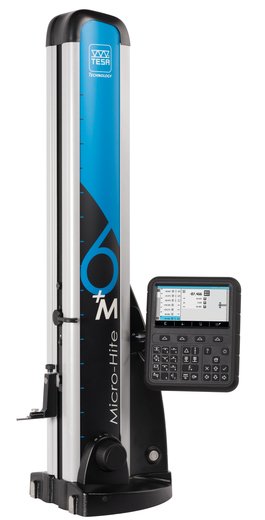

The motorized gauge MICRO-HITE+M is distinguished first of all by its exclusive patented hand-wheel for displacement (FEEL&MOVE technology) that combines fast probe positioning with fluid execution of a measurement sequence. Universal machine developed for workshops and for laboratories that can be integrated as close as possible to the user. Indeed, the robustness of its cast iron base and frame make it to a reliable instrument that guarantees an excellent repeatability and precision in any kind of conditions. It is not only equipped with 1D basis functions, but also with advanced measuring modes (angle, programming, 2D, ...) that are welcome when certain metrological requirements become more constraining. With the integrated patented QUICKCENTER technology, the height gauge gives clear indications not only when certain capturing simple points but they become a proven advantage for the determination of the culmination points. Each MICRO-HITE+M is delivered with a free measuring certificate SCS (Swiss Calibration Service) avoiding any additional extra cost due to a re-certification of the instrument directly after purchase.
• PANEL - Hybrid with colour touch screen and keyboard - Refined keyboard for easy handling without confusion - Adjustable support for optimal reading of the screen at any time • AUTONOMY - Rechargeable interchangeable battery - Infinite operative with a backup battery • MEASUREMENT - Patented QUICKCENTER technology integrated to efficiently determine the culmination points - Advanced functions for a multi-task instrument, accessible to all users - Context-based help to avoid incorrect use and bad results - Clear results to decrease possible errors due to bad interpretation of the displayed results • INSTRUMENT - Robust construction to ensure longevity and stability of results over time - Intelligent hand-wheel that integrates the FEEL&MOVE technology for fast and precise probe positioning. • DATA MANAGEMENT - Sending values to computer via TLC port - Automatic creation of pdf reports or txt file on USB stick - Data printing via USB printer • SCS CALIBRATION CERTIFICATE - Free SCS Certificate supplied with purchase to avoid any additional extra costs for calibration of the instrument directly after purchase
00730079
| Katalogové číslo | Popis produktu |
|---|---|
| 00730079 | MICRO-HITE +M 350 |
| 00730080 | MICRO-HITE +M 600 |
| 00730081 | MICRO-HITE +M 900 |
| Measuring force | 1,6 ± 0,25 N |
| Units | mm / in |
| Standard | Factory standard |
| Resolution | 0,0001 / 0,001 / 0,01 mm .00001 / .0001 / .001 in |
| Zero | Fixed |
| Coefficient of linear expansion | 11,5 x 10-6 K-1 |
| Material | Base and frame: cast iron |
| Weight | Model 350: 33 kg Model 600: 37 kg Model 900: 45 kg |
| Power supply | Power connection Rechargeable interchangeable battery |
| Function(s) | Measuring probe can be displaced (motorised) with a displacement wheel Air cushion system |
| Autonomy | 8 hours (with a battery block) Infinite (with two battery blocks) |
| Included in delivery | SCS calibration certificate Declaration of conformity |
| Data output(s) | TLC, USB |
